"Pressure Measurable, Comfort Knowable" — Human-Interface Pressure Distribution Measurement Method Based on Flexible Fabric Sensor Array

During the development of apparel and wearable products, "comfort" has always been a design metric that remains difficult to separate from subjective judgment. Wear testers report feeling "a bit tight" or "uncomfortable after prolonged wear," and designers adjust patterns or structures based on experience. Yet information such as where exactly the pressure occurs, what the pressure value is, and how pressure migrates under dynamic movements—is almost entirely lost in traditional evaluation processes that rely on subjective perception.

The technical value of the Pressure Films single-point flexible fabric pressure distribution system lies in its ability to convert these vague tactile descriptions into objective pressure data that can be recorded, compared, and traced, providing a measurement tool for the engineering-based assessment of product comfort.

The sensing elements of the Pressure Films single-point flexible fabric pressure distribution system use a flexible fabric substrate, distinguishing it from traditional rigid film sensors or air-bag pressure measurement devices. The bendable nature of the fabric material allows it to conform to the complex curved surfaces of the human body—including non-planar areas such as shoulders, waist and abdomen, the nasal bridge, and the auricle—maintaining stable interface contact under both static standing and dynamic movement conditions.

A single receiver supports up to 4,096 independent sensing points, meeting the requirements for large-area or high-density sensor placement. The size and shape of each sensing point can be arbitrarily customized based on the contact area of the object being measured, adapting to anything from narrow, elongated strips to irregularly curved surfaces. The minimum resolution reaches 4mm × 4mm.

In apparel R&D scenarios, the Pressure Films system primarily addresses three engineering problems: locating static pressure peaks, tracking pressure migration under dynamic movements, and quantitatively verifying compression gradients. Taking products that require support or constraint—such as sports bras, waist trimmers, and compression sportswear—as examples, the interface pressure between the human body and the garment is not uniformly distributed but rather forms a complex map composed of a series of alternating high and low pressure points.

Under static standing posture, Pressure Films generates a complete pressure cloud map, outputting the specific pressure value at each sensing point. The R&D team can thereby identify pressure points that exceed the reference range of comfort thresholds and further determine the cause of these high-pressure points—whether it is a geometric deviation in the pattern design, an unreasonable structure at the fabric seam, or individual differences between the wearer's body type and the standard size. This judgment process no longer relies on speculation but is based on traceable, measured data.

Measurement under dynamic movements is a key capability that distinguishes Pressure Films from traditional static pressure measurement devices. As the wearer performs actions such as running, squatting, or arm raising within real usage scenarios, the system continuously records the movement paths and amplitude changes of pressure hotspots. For example, during running, the contact pressure between the shoulder strap and clavicle of a sports bra exhibits regular fluctuations with the gait cycle. For a pair of compression pants during a squatting motion, the pressure trends on the lower back and behind the knee show completely different patterns of change. Through the visualization of dynamic pressure migration, R&D teams can verify whether a pattern design maintains a reasonable pressure distribution under real usage scenarios, rather than serving only a static display posture.

Image generated by AI

For products that require gradient compression, such as waist trimmers and compression socks, Pressure Films can plot a pressure decay curve along the product's longitudinal axis, comparing the measured gradient against the design target values. If the measured curve deviates from expectations—for example, decaying too rapidly or exhibiting localized pressure reversal—engineers can further trace the issue back to batch-to-batch variations in fabric elastic modulus, control of seam stitching tension, or the rationality of the sizing grade scheme.

The current women's intimate apparel market has clearly shifted toward wireless bras. Consumer surveys and clinical observations both indicate that the localized high pressure generated by underwires on the infra-mammary fold is one of the primary factors causing chest tightness, red marks, and wearing discomfort. The support of a wireless bra comes entirely from fabric tension, the shaping structure of the molded cup, and the mechanical balance between pattern pieces. In other words, the pressure originally borne by the underwire is redistributed to areas such as the shoulder straps, side wing, bottom edge of the cup, and back wing. This shift in mechanical architecture places higher demands on the uniformity of pressure distribution: if the pattern or fabric choice is inappropriate, the pressure does not disappear with the removal of the underwire but rather transfers to other areas, potentially manifesting as abnormal shoulder strap pressure, increased friction at the side wing, or uneven digging sensation along the bottom edge of the cup.

The application value of the Pressure Films system in wireless bra R&D is reflected in three aspects. First, it quantifies the path and magnitude of pressure redistribution after underwire removal, clarifying exactly which specific points the pressure originally borne by the underwire area transfers to. Second, it verifies the consistency of pressure distribution for the same pattern design across different cup sizes. Research has shown that the breast characteristics of women with large cups differ significantly from standard cup shapes, and the root cause of fit issues often lies in the mismatch between breast characteristics and structural design—pressure distribution measurement can present this "mismatch" as a visualizable pressure cloud map. Third, it optimizes fabric zoning and pattern piece construction—for example, by comparing pressure data from under-bust fabrics with different elastic moduli on the same wearer, selecting a material solution that provides sufficient support while generating minimal localized pressure.

Comfort evaluation for head-worn devices such as headphones and eyeglasses faces technical challenges different from those of apparel: the contact areas are typically narrow bands or small surfaces, contact pressure values are relatively low, and the measured surfaces are often curved or have subtle undulations. The adaptability of Pressure Films for such applications stems from two technical characteristics.

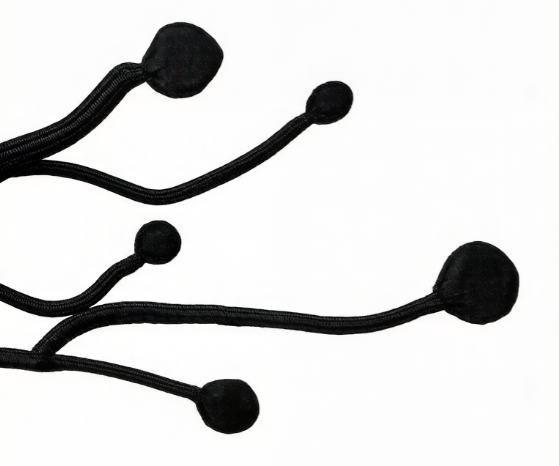

First, the customizability of sensing point size and shape. It allows the creation of strip-shaped sensor arrays that perfectly match the contour of a headphone headband cushion, or micro-sensing units that conform to the geometry of eyeglass nose pads, avoiding measurement errors caused by "approximate alignment" using generic rectangular sensors. Second, the curved-surface conformability of the flexible fabric substrate. Rigid sensors tend to create localized bridging on surfaces with significant curvature changes, resulting in an effective contact area smaller than the design value and thereby underestimating actual pressure; the flexibility of the fabric substrate ensures complete conformity between the sensor and the measured surface.

Image generated by AI

Based on the above technical characteristics and application validation, the Pressure Films single-point flexible fabric pressure distribution system is suitable for sports apparel (compression garments, compression pants, sports bras), bras, waist trimmers, shapewear, compression socks, smart wearable clothing, as well as over-ear headphones, eyewear (prescription glasses, sunglasses, smart glasses), helmet liners, mask seal evaluation, medical braces and orthotics, backpack shoulder straps, and any other products that require precise control of contact pressure at the human-product interface. Any design problem involving the engineering balance between "fit" and "pressure" can, in theory, be included within the measurement scope of the Pressure Films system.
