Within the application landscape of multi-axis force/torque sensors, robot control stands out as one of the most technology-intensive and fastest-growing domains. Traditional industrial robots primarily rely on position control, moving along predefined trajectories. However, this approach becomes "rigid" and "blind" when dealing with uncertain environments, such as variations in assembly tolerances or uneven workpiece surfaces. The PF force plate serves as the external sensory nerve for the robot in this context.

The image is generated by AI.

In scenarios such as electronics production lines or precision bearing press-fitting, even minor alignment errors or excessive contact forces can damage workpieces. By integrating a PF force measurement system at the robot end-effector or work platform, the robot can perceive vector changes in contact force in real time. When the system detects abnormal lateral forces in the Fx or Fy directions, the control system immediately adjusts the pose to perform a "hole search"; when the axial force in Fz reaches a preset threshold, it instantly stops the feed. This force-position hybrid control based on six-dimensional data enables true "compliant contact" during assembly processes.

The image is generated by AI.

For bipedal humanoid robots, quadruped robots, or exoskeleton robots, maintaining dynamic balance is a prerequisite for walking. The PF force plate can calculate the real-time trajectory of the Center of Pressure (CoP). The direction and velocity of CoP deviation in the X-Y plane directly reflect the robot's stability margin. Combined with Mz data, the control system can precisely determine whether the robot is stationary, moving forward, or turning, thereby driving the joint motors to perform real-time compensation. Within the framework of embodied intelligence, this continuous stream of mechanical perception data represents the key technological barrier that enables robots to evolve from merely "seeing" to truly "feeling and maintaining stability."

The aerospace industry pursues "redundancy" and "precision" with an almost obsessive intensity. Whether it's the flutter analysis of aircraft wings or thrust vector testing of rocket engines, high-precision multi-axis force measurement is indispensable. The PF high-precision 3D force plate meets the stringent demands of this field with its high stiffness and wide dynamic range.

During the development of aircraft (including large passenger jets, transport aircraft, and even drones), landing gear performance is directly critical to flight safety. To simulate the massive impact forces that landing gear endure upon touchdown, engineers mount the landing gear onto a specially designed PF high-precision 3D force plate for "drop tests." In this setup, the PF force plate acts like a precision "scale," capable of measuring in real time and with high accuracy the forces from three directions at the moment the wheels strike the ground: vertical impact force (Fz, to determine if the damping system meets standards), horizontal drag force (Fx, related to braking efficiency), and lateral force (Fy, to evaluate crosswind resistance). Beyond vertical impact, aircraft also experience violent wheel shimmy during taxiing; the force plate can capture these high-frequency dynamic loads, helping engineers optimize designs and eliminate potential safety hazards at the source.

The image is generated by AI.

Biomechanics is the most mature and widely adopted application field for the PF high-precision 3D force plate. Human motion is an extremely complex dynamic process — from walking and running to jumping — where the ground reaction force is the only external force driving the movement of the body's center of mass. Without precise mechanical data, any inference regarding muscle activation or joint loading would lack a solid foundation.

The image is generated by AI.

In explosive power events such as sprint starts, long jump takeoffs, or weightlifting clean and jerks, victory or defeat often hinges on force development rate measured in milliseconds. Traditional equipment can only measure vertical force, but the PF high-precision 3D force plate provides a complete picture of the forces involved throughout the entire movement. By analyzing these data, coaches can move beyond empirical guesswork. For example, if the data shows that the peak vertical force during the left-leg stance phase is 15% lower than that of the right leg, accompanied by abnormal fluctuations in Fy, it indicates that the athlete's left knee is not generating sufficient force. This finding can prompt a deeper investigation into potential underlying injuries.

In the medical field, gait analysis is one of the gold standards for diagnosing neurological disorders (such as Parkinson's disease and post-stroke sequelae) and assessing recovery following orthopedic surgery. The CoP trajectory map provided by the PF high-precision 3D force plate acts like a "footprint," revealing whether a patient's center of mass shifts smoothly during walking.

As manufacturing demands for process control continue to rise, PF force plate data, serving as a high-precision reference standard, is being widely adopted in performance verification and online inspection of various industrial products. Take tire contact pressure, for example: by embedding the PF force plate into an experimental road surface, the force distribution across the tire's contact patch can be measured under different loads and inflation pressures. This data is directly critical to a vehicle's grip and handling stability.

The image is generated by AI.

In logistics and transportation, the impact a product experiences during a fall is often multi-dimensional. Traditional accelerometers struggle to measure torsional moments. By placing the product on a simulated transport platform combined with a PF high-precision 3D force plate, the peak impact forces in three directions and the torsional moment on the product's base at the moment of impact can be precisely measured. This data can then guide packaging design, using cushioning materials to convert destructive shear forces into relatively safer compressive forces.

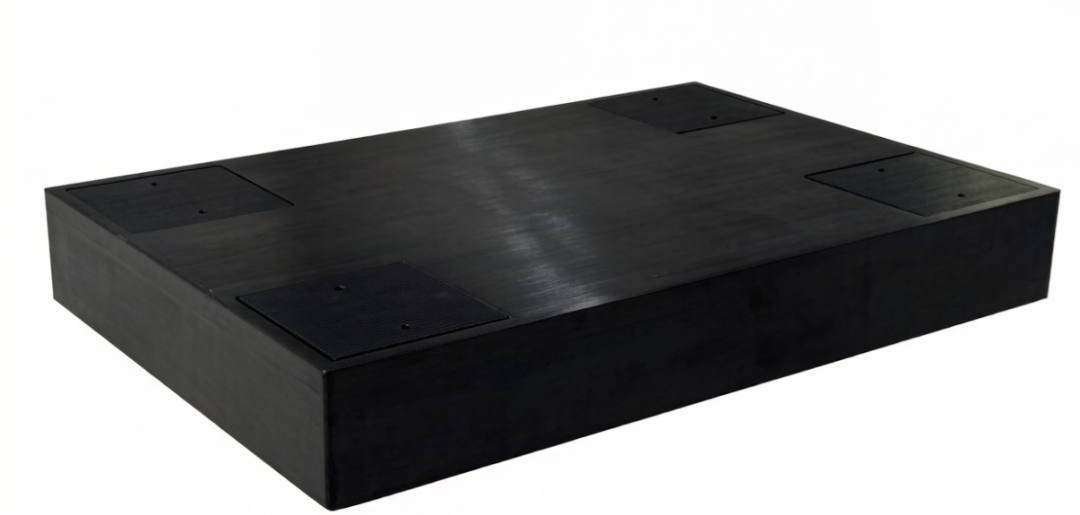

The reason the PressureFilms system is capable of handling the complex application scenarios described above lies in its underlying core technologies:

· High Dynamic Response Performance

The force platform is equipped with high-performance force sensors featuring a natural frequency of up to 1 kHz, combined with a unified sampling rate of 3000 Hz across the entire product series. This enables accurate capture of rapidly changing dynamic forces and transient impact signals, making it suitable for high-dynamic applications such as motion analysis, gait studies, and impact testing.

· Excellent Measurement Accuracy and Stability

The entire product series offers a unified combined accuracy of ±0.2% FS (covering nonlinearity, hysteresis, and repeatability), with flexible customization of FX, Fy, and Fz ranges. Coupled with 24-bit high resolution and an IP65 protection rating, this ensures highly reliable and repeatable precision measurement even in complex environments.

· Flexible System Integration Capabilities

Multiple data interfaces are available, including Ethernet data transmission, BNC synchronization ports, and 6-channel analog signal output, facilitating synchronized integration with third-party devices such as high-speed cameras, electromyography (EMG) systems, and motion capture systems. This supports multimodal data acquisition and real-time analysis, making it suitable for building complex test systems.

The core value of the PressureFilms high-precision 3D force plate lies in transforming the multidimensional force state — which originally cannot be directly measured — into engineering data that can be recorded, reproduced, and compared. This provides a clear physical reference for product design, process optimization, and quality control. For any scenario that requires an accurate understanding of how forces act upon an object in three-dimensional space, PressureFilms is a proven and reliable tool.
