In the field of sports science and biomechanics research, the measurement and analysis of force have always been the core key to understanding the essence of human movement. From a simple vertical jump to complex multi-joint coordinated movements, the interaction force between the human body and the ground contains a wealth of information regarding technique, injury risk, and athletic performance. As a high-precision digital six-degree-of-freedom force acquisition and analysis system, the PRESSURE FILMS 3D force plate is redefining the standards of human movement mechanics research through its exceptional technical performance and wide range of applications.

The high dynamic response performance of the PRESSURE FILMS 3D force plate enables it to accurately capture rapidly changing dynamic forces and transient impact signals. Whether it's the explosive force during a sprint start, the impact load of a jump landing, or the instantaneous changes during foot contact with the ground throughout the gait cycle, all can be completely recorded, providing a solid technical foundation for high-dynamic application scenarios.

In terms of data acquisition dimensions, the system achieves true six-degree-of-freedom force measurement capabilities: synchronously detecting three force components (Fx, Fy, Fz) and three moment components (Mx, My, Mz) in three-dimensional space. The consistent 3000Hz sampling frequency across the entire series ensures that every detail of mechanical change is continuously captured along the time axis. This means researchers can obtain not only the vertical ground reaction force but also simultaneously acquire the braking and propulsive forces in the anterior-posterior direction, the lateral forces in the medial-lateral direction, and the moment information around each axis.

Measurement accuracy is the lifeline of any scientific instrument, and the PRESSURE FILMS 3D force plate demonstrates a convincing level of professional excellence in this area. The entire product series boasts a comprehensive accuracy of ±0.2% FS, a specification that fully encompasses the three key error sources: non-linearity, hysteresis, and repeatability, ensuring that the results of every measurement are robust and verifiable. Coupled with a 24-bit high-resolution data acquisition system, the information fidelity from the sensor's raw signal to the digital output is preserved to the greatest extent. The system also features an IP65 protection rating, ensuring high reliability and repeatability of measurement data even in humid, dusty, and complex environments. It is particularly worth mentioning that the measurement ranges for the three directions (Fx, Fy, Fz) can be flexibly customized according to specific application requirements, allowing for the most suitable configuration whether measuring delicate finger forces or the explosive power output of athletes.

With precise force data, researchers can derive acceleration through the relationship between force and mass, obtain velocity changes through a single integration of acceleration, and determine displacement trajectory through double integration. Combined with the known platform dimensions and sensor installation positions, the system can also calculate the moments in three directions and the coordinates of the center of pressure (COP_X, COP_Y). These parameters hold irreplaceable value for analyzing human balance ability and movement stability.

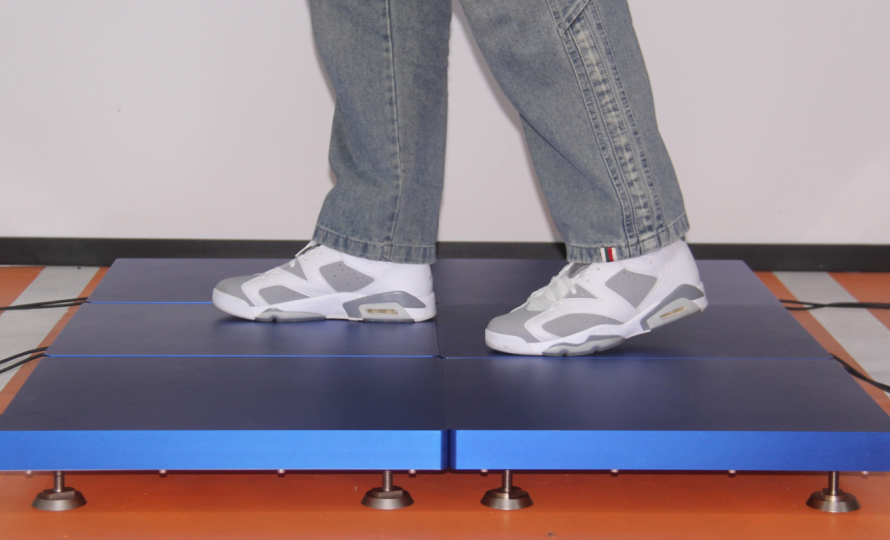

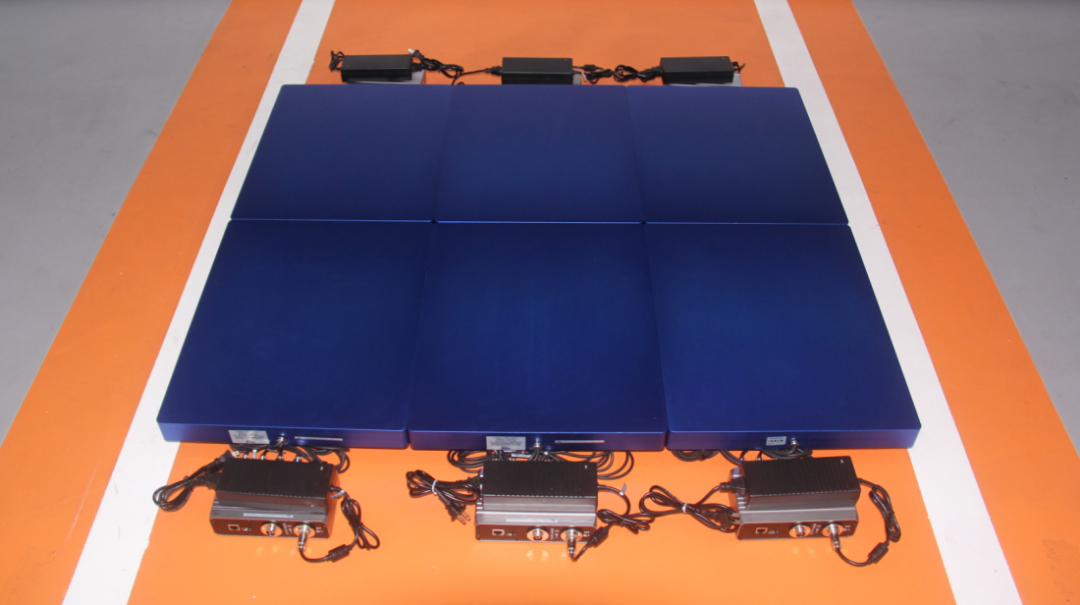

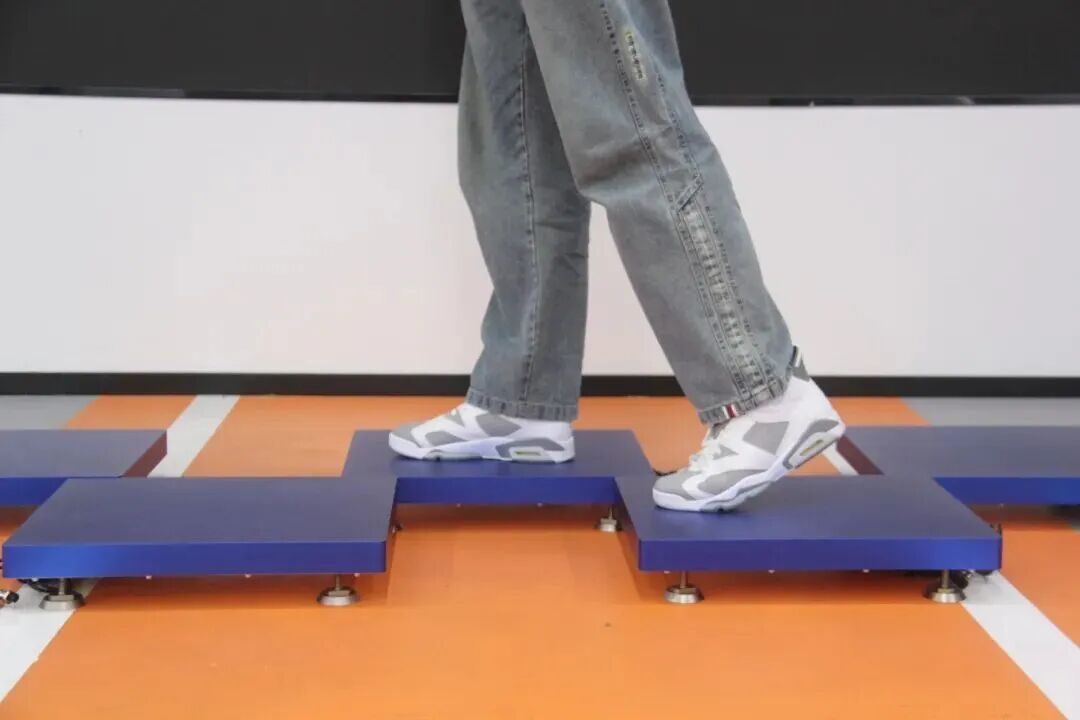

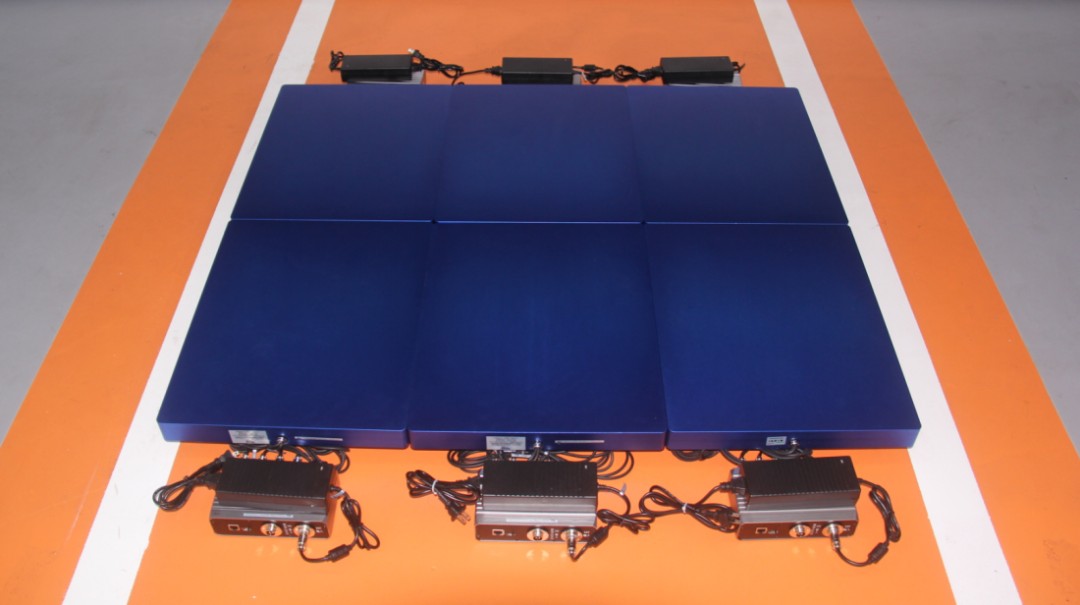

▲ The PRESSURE FILMS 3D force plate can be assembled by splicing multiple units together, enabling precise measurement of ground reaction forces during activities such as short-distance walking and running.

Sports Competition: A Paradigm Shift from Experience-Based Judgment to Data-Driven Decision Making

Whether in traditional competitive sports like track and field, skating, football, and basketball, or in sports demanding high postural control such as shooting and volleyball, applying force correctly to the ground is not only key to enhancing athletic performance but also a core element in preventing sports injuries. The high dynamic response performance of the force plate is fully utilized in this field—the force development curve within hundreds of milliseconds at the start of a sprint, and the impact load several times body weight during a jump landing, can all be accurately captured and quantitatively analyzed.

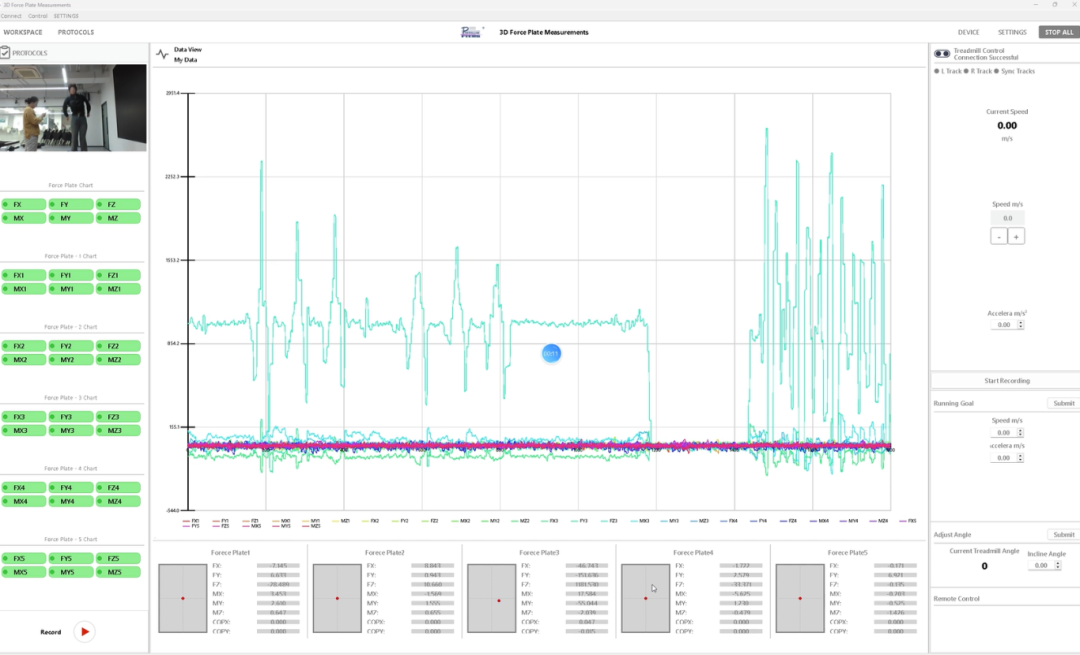

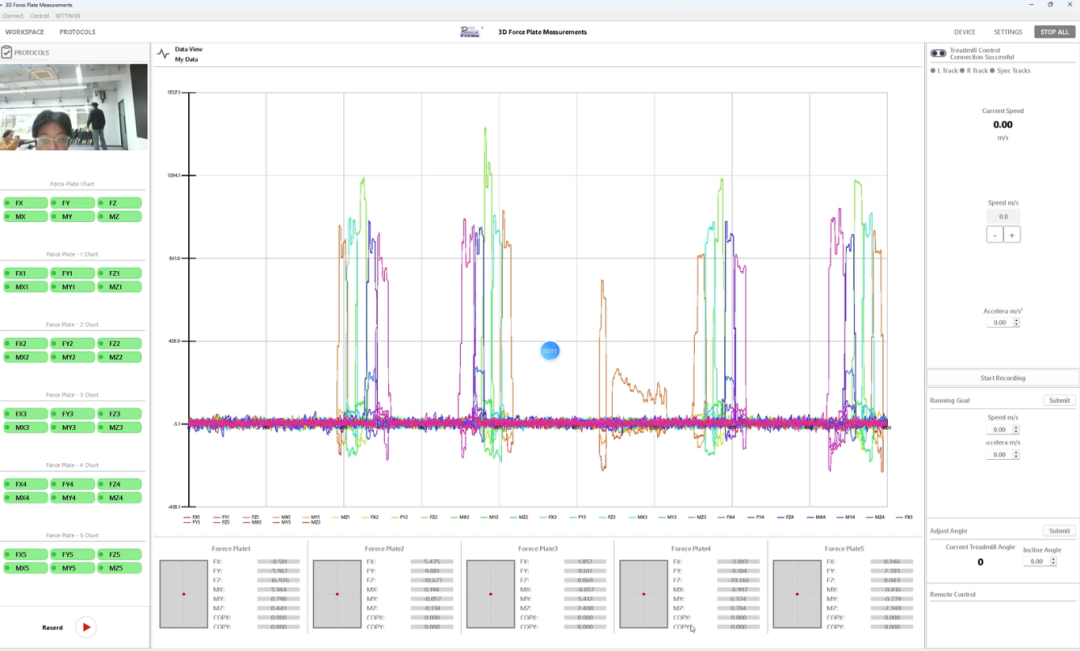

In the process of optimizing running technique, the PRESSURE FILMS 3D force plate can precisely analyze the pressure distribution characteristics during an athlete's foot contact with the ground. With its high sampling rate of 3000Hz, the system can meticulously chart the mechanical change curve throughout the entire stance phase, from heel strike to toe-off. By acutely identifying asymmetries in left and right foot gait patterns, coaches can make targeted adjustments to the athlete's running form, effectively reducing abnormal joint loading and improving energy transfer efficiency. This enhances performance while simultaneously lowering the risk of stress-related injuries. Based on this objective data, custom insoles can also be tailored for each athlete to alleviate foot fatigue and prevent common sports injuries such as stress fractures.

The setup time required for testing is extremely short, allowing for rapid, continuous testing of large groups of athletes. This offers significant advantages in talent identification and condition monitoring for team sports. More importantly, force plate data possesses inherent objectivity—whether an athlete attempts to conceal an injury or pain, or aims to appear stronger, faster, or more powerful than their actual state, the comprehensive accuracy of ±0.2% FS ensures the data itself does not lie. This characteristic of being "impossible to cheat" makes it an ideal tool for talent selection, injury assessment, and competitive form monitoring.

Injury Rehabilitation: A Leap from Qualitative Assessment to Quantitative Diagnosis

In the fields of injury prevention and rehabilitation medicine, the application of the PRESSURE FILMS 3D force plate is equally profound and extensive. Gait analysis, as one of its core applications, provides an objective and precise quantitative basis for clinical diagnosis and rehabilitation evaluation. The system's high precision plays a critical role here—minute changes in plantar pressure, or subtle antalgic gait patterns adopted due to pain, are all meticulously recorded, providing reliable support for clinical decision-making.

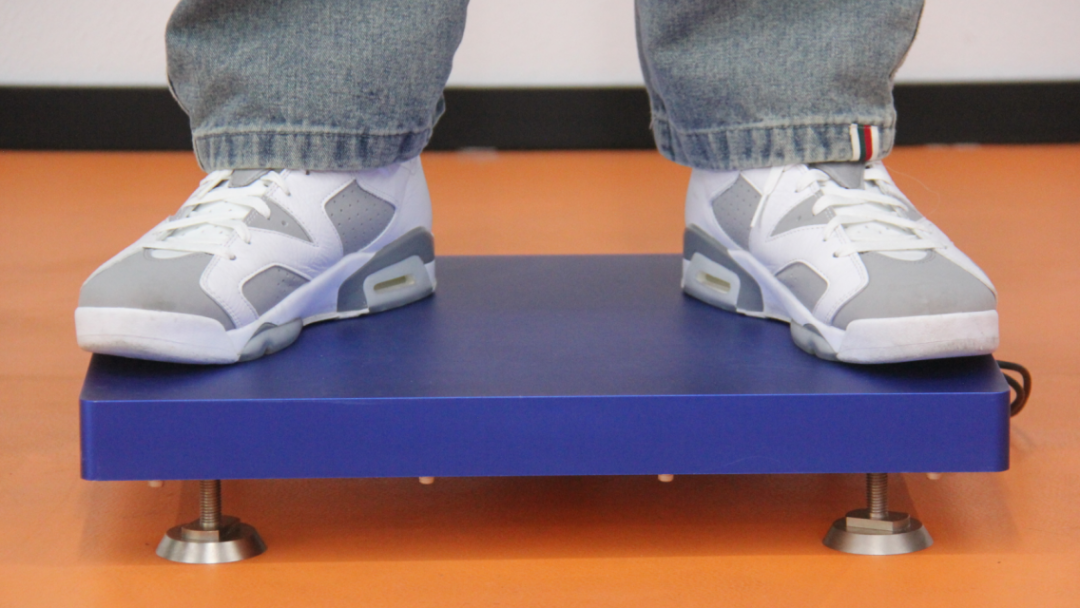

In clinical practice, when a patient stands on or walks across the force plate, the system captures complete mechanical information through triaxial force sensors symmetrically distributed at the four corners. After amplification and analog-to-digital conversion, it generates force value sequences in the vertical, anterior-posterior, and medial-lateral directions. This data provides a comprehensive view of the load distribution on each foot, intuitively revealing gait compensation patterns resulting from issues such as ankle sprains, post-knee surgery conditions, or chronic lower back pain. Rehabilitation physicians can use this data to objectively assess rehabilitation progress, adjust treatment plans, and ensure patients return to activity safely and effectively.

System Integration: Building a Collaborative Platform for 3D Motion Analysis

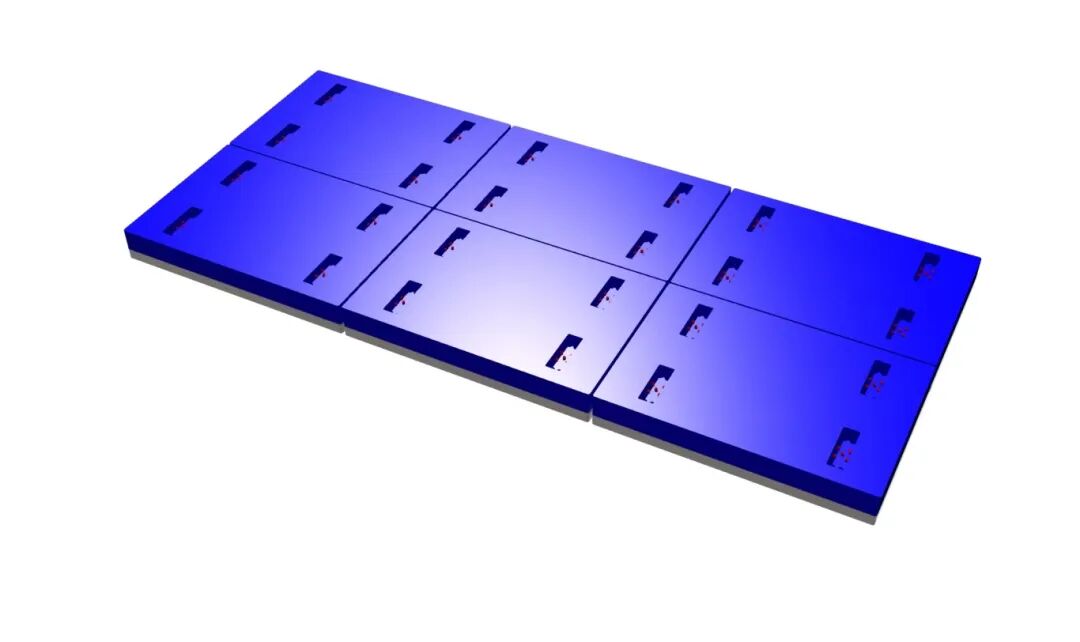

A core advantage of the PRESSURE FILMS 3D force plate also lies in its flexible system integration capabilities and modular design philosophy. When force data from a single dimension is insufficient to fully describe a complex movement, the force plate can seamlessly integrate with various devices to form a comprehensive 3D motion analysis system. This is the core value of its role as a research platform—not an isolated measurement tool, but an open data acquisition node. These interface designs enable the force plate to integrate seamlessly with third-party equipment such as high-speed cameras, electromyography (EMG) systems, and motion capture systems, supporting multi-modal data acquisition and real-time analysis.

From technique optimization on the sports field, to gait assessment in rehabilitation centers, and to fundamental research in laboratories, the PRESSURE FILMS 3D force plate, with its precise data acquisition capabilities, exceptional technical performance, and flexible system integration characteristics, is driving sports science, medical rehabilitation, and related fields from qualitative description towards quantitative analysis, and from experience-based judgment towards data-driven decision-making. Its high dynamic response performance enables it to capture the most subtle mechanical changes during movement, itsmeasurement accuracy ensures the reliability of research conclusions, and its flexible system integration capabilities open up possibilities for multi-modal data fusion analysis. It not only provides a powerful tool for understanding the fundamental principles of human movement but also plays an increasingly important role in preventing injuries, enhancing performance, and improving quality of life.

In this data-driven era, the PRESSURE FILMS 3D force plate is helping us shift from passively responding to problems to proactively designing safer, more efficient, and more scientific human-machine interfaces. It provides robust support for exploring the limits of human athletic performance and ensuring a scientifically sound foundation for a healthy life.
