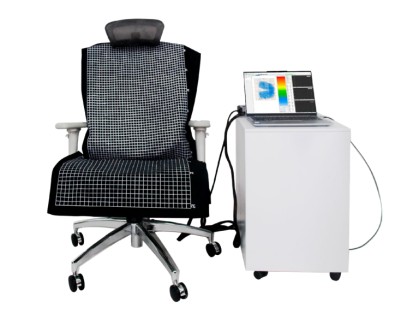

The Human Body Pressure Distribution System, comprising pressure distribution sensors, a data receiver, analisys and data collection software, transmits pressure values and contact area data from eachsensingpointinreal-timeviawirelessorwirednetworks,simulta-neously calculating average, maximum, and minimum pressure values across the entire sensor array.

PRODUCTSPECIFICATIONS

SENSOR

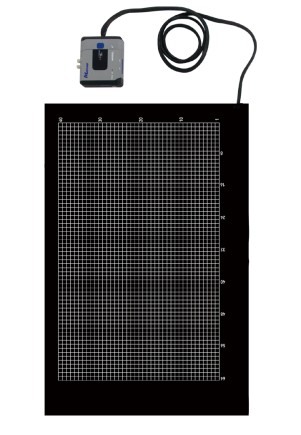

Specifications：Seating PF-F64-S5050

Overall Size ：600mm*600mm

Sensing Size ：500mm*500mm

Sensing Units：4096（64*64）

Sensing Unit Size：5mm*5mm（Gap2.8mm）

Sensing Density：1.6/cm²

Material :Flexible Fabric with Free-Form Bending Capability

Principle:Resistive

Stretchability：100%

Lifespan：>150,000 cycles

Thickness：≤1.5mm

Range：0-10PSI (0-70Kpa)（customizable)）

Accuracy：±10%FS

Repeatability：±2%

Operating Temperature：-30~70℃

Operating Humidity ：5% RH ~ 95%RH

Specifications：Seat back PF-F64-S5080

Overall Size ：600mm*900mm

Sensing Size ：500mm*800mm

Sensing Units：2560（64*40）

Sensing Unit Size：10mm*10mm（Gap2.5mm）

Sensing Density：0.64/cm²

Material :Flexible Fabric with Free-Form Bending Capability

Principle:Resistive

Stretchability：100%

Lifespan：>150,000 cycles

Thickness：≤1.5mm

Range：0-10PSI (0-70Kpa)（customizable)）

Accuracy：±10%FS

Repeatability：±2%

Operating Temperature：-30~70℃

Operating Humidity ：5% RH ~ 95%RH

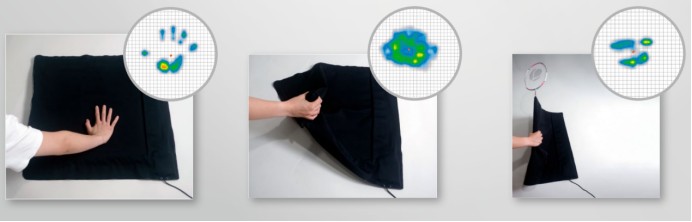

Extrodinary Perfomance

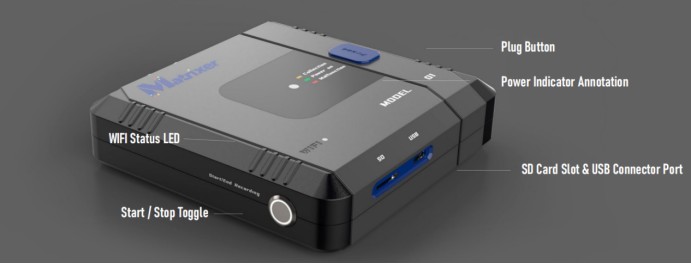

DATA RECEIVER

Resolution：12bit

Data Collection Modes ：USB + WiFi + SD

Wired Frequency ：0-200Hz (adjustable)

WiFi Frequency ：0-100Hz (adjustable)

Offline Storage Frequency ：0-200Hz (adjustable）

Offline Storage ：128GB

Power Supply ：USB/Power Bank

Data Sync Interface ：With the Synchronized Trigger BNC Interface

Waterproof ：Customizable IP67

Certification ：Certification Reports Available from Accredited Domestic Third-Party Institutions

Advanced Algorithms

SOFTWARE

·Real-time Pressure Matrix Monitoring: Support dynamic data refresh for all sensor units.

·High Accuracy Data Display: Real-time pressure values with4-decimal-place

accuracy.

·Multi-Unit Data Export: TXT/CSV formats；Units include kg/cm², kPa, PSl.

·Smart Zone Analysis: Customizable zones with auto-calculation of avg/max/min pressureand contact area.

·Dynamic Sensing Unit Statistics: Real-time display of activesensing unit count and pressure values, facilitating analysis of pressure distribution uniformity.

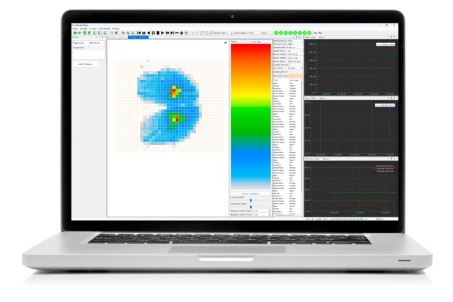

·2D/3D Pressure Mapping: Utilize a blue-green-yellow-red spectrumto visualize pressure scales, providing intuitive pressure distribution visualization, and support overlay display of 2D cloud maps with pressure values.

·Test Process Recording: Capture complete test data with timeline replay capability,enabling traceability of critical pressure transition points.

·Pressure-Time Curve:Automatically generate dynamic load curves and support multichannel data comparison analysis.

·Cross-platform compatibility: Support Windows 8/10/11 and Android systems, satifying usage requirements across multiple scenarios.

·Flexible licensing model: Support installation on multiple computers without hardware dongle or account binding restrictions.

·Lifetime Upgrade Service: Provide continuous software optimizationand functional expansion to ensure cutting-edge technology.

·High-performance processing capability: Support simultaneous collectiono and analysis of multiple sensors to meet industrial-gradeapplication requirements.

PRODUCT ADVANTAGES

·Real-Time Display

·High Accuracy Analysis

·Zone-Specific Statistics

·Quantitative Evaluation

·Record & Storage

·2D/3D Visualization

·Flexible Fabric Material

·Soft, Comfortable, and Breathable

·Extended Service Life

·180° Foldable

·Extensibility, suitable for human body contour measurement

·Additional customization of waterproof encapsulation available

CUSTOMIZED SERVICE

Sensor customization：Customized pressure sensors of diferent sizes and sensitivities for diverse application scenarios

Sensor customization：Provision of core data collection interaces with open SDK/API

Algorithm & Data Services：Provision of fundamental data serices with customizable

algorithm solutions

Hardware Design：Matching hardware design soultions for corresponding sensors

APPLICATION FIELDS

Child SeatSofaGaming Chair

Zero-Gravity SeatOutdoor ChairOffice Chair

Vehicle SeatHigh-Speed RailwaySeatAircraft Seat

Massage ChairWheelchair Seat
