The high­precision six­axis force acquisition and analysis system is a precision mechanical measurement solution capable of simultaneously measuring three orthogonal force components (Fx, Fy, Fz) and three moment components (Mx, My, Mz),enabling real­time acquisition and analysis of all six force/moment components.

Using high­sensitivity transducers and advanced digital signal processing together with dedicated software, the system is suitable for robot control, aerospace, biomechanics, industrial testing and other applications. It provides accurate force/moment visualization, dynamic response analysis and process monitoring, offering an efficient and reliable digital solution for research and engineering.

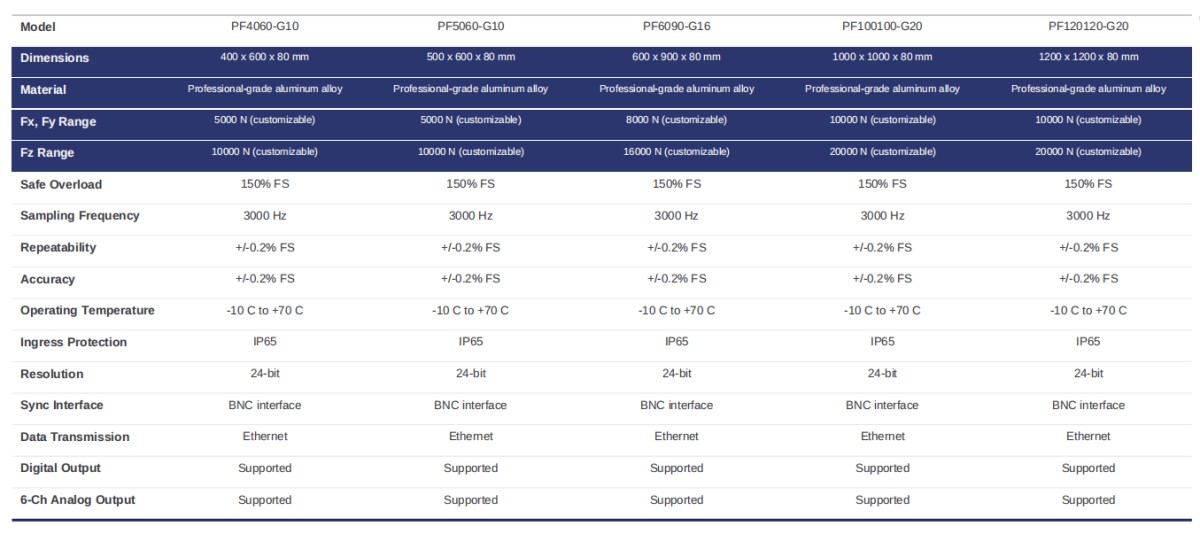

TECHNICAL DATA     SPECIFICATION

WORKING    PRINCIPLE

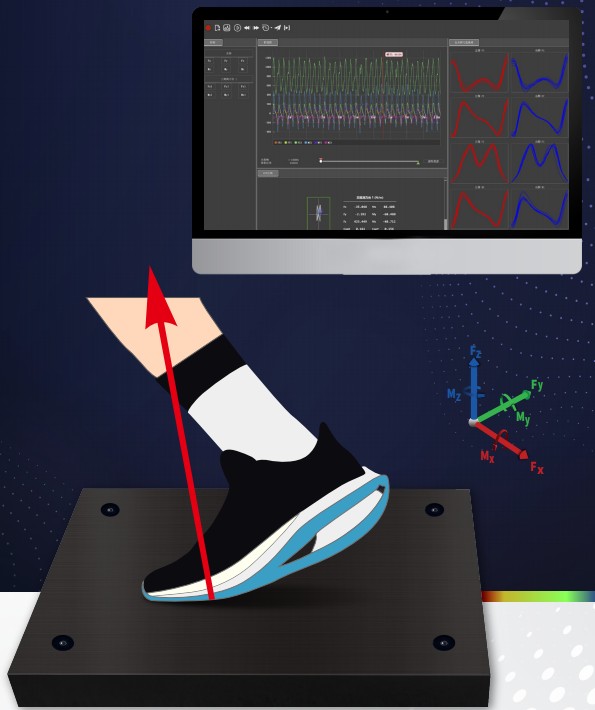

The high­precision 3D force plate system uses high­sensitivity transducers to simultaneously capture the three ground­reaction force components (Fx, Fy, Fz) and three moment components (Mx, My, Mz) generated during human movement. Advanced digital signal processing and dedicated software convert the physical force signals into visualized data for real­time acquisition, dynamic analysis and process monitoring of all six components.

PRODUCT    FEATURES

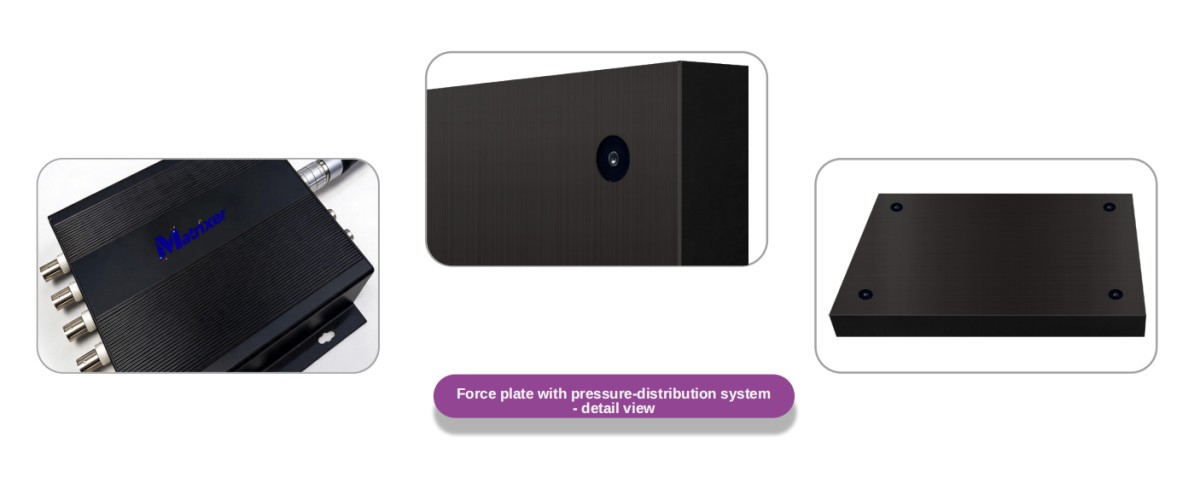

3D force plate - detail views.

COMPONENTS    PRODUCT

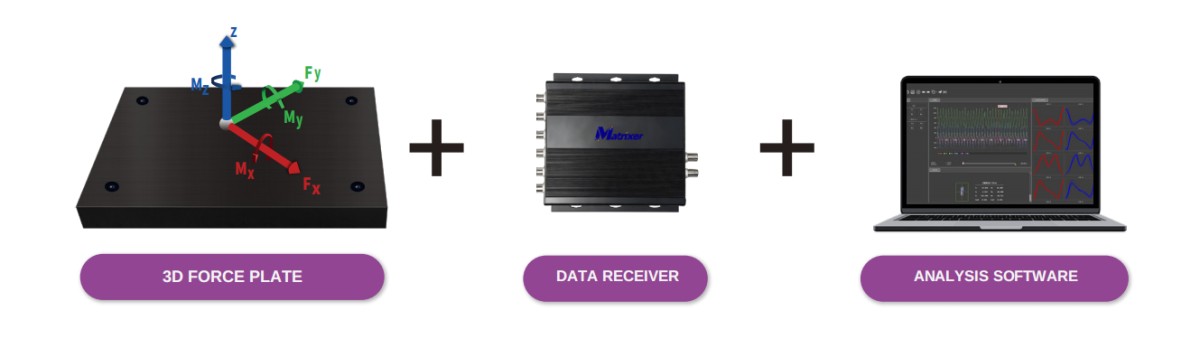

The high-precision 3D force plate system consists of a 3D force plate, data receiver, and data acquisition & analysis software.

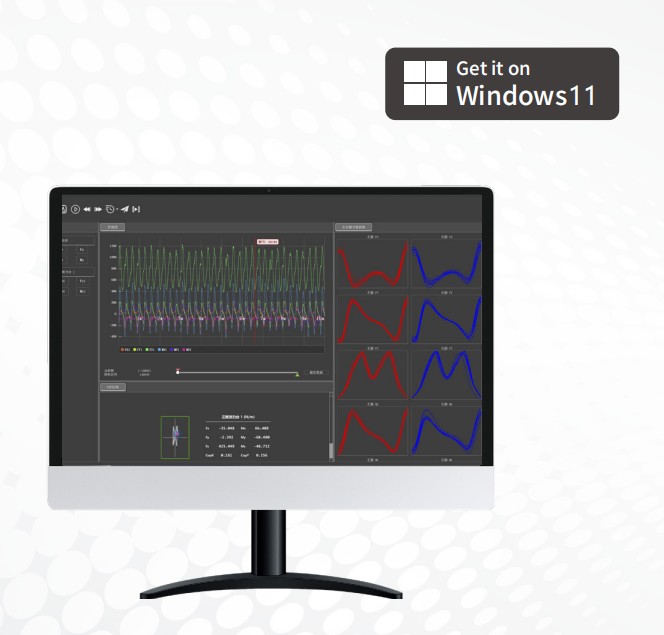

DATA ACQUISITION &ANALYSIS SOFTWARE

OPEN SDK:Provides an open SDK for secondary development and system integration. Compatible with common motion­capture systems for synchronized acquisition of force/moment data and motion­capture trajectories.

RECORD & PLAYBACK:Records complete test­session kinetic data. Timeline navigation, slow­motion playback and frame­by­frame analysis help identify key events.

REAL­TIME CURVES:Supports high­rate synchronized acquisition of six­component force/moment data (Fx, Fy, Fz, Mx,My, Mz) from multiple force plates. Real­time multichannel curves enable continuous monitoring and comparison of individual and resultant force components.

PARTICIPANT INFO:Enter participant name, ID, sex, age, height, body mass, test protocol, dominant limb and other information. Records are linked to the corresponding test data for traceability, group comparisons and batch analysis.

SYNC MULTI­PLATE:High­speed synchronized acquisition from multiple force plates maintains precise time alignment across channels.

DATA   RECEIVER

ADJUSTABLE SAMPLINGRATE 0-6400 Hz, user selectable

REAL-TIME DISPLAY Refresh rate >= 6400 Hz

VIDEO SYNCHRONIZATION>= 8 network cameras

ZEROING One-click and per-channel zeroing

PRESSURE-MAPPING SYNC 16,384 active sensing elements

DATA SEGMENTEXPORTSelect and export any interval

DATA RECORDING Project-file recordingsupported

EXTERNAL TRIGGER 2 BNC sync trigger ports

ANALOG OUTPUT 6-channel BNC analog output

PRODUCT   ADVANTAGES

HIGH DYNAMIC RESPONSE

Equipped with high­performance force transducers with natural frequencies up to 1 kHz. Combined with the series­wide 3000 Hz sampling rate, the platform accurately captures rapidly changing dynamic forces and transient impact signals for sports analysis, gait research, impact testing and other high­dynamic applications.

FLEXIBLE SYSTEM INTEGRATION

An external amplifier provides analog signal outputs. Ethernet transmission, BNC synchronization and 6­channel analog outputs enable integration with high­speed cameras, EMG systems, motion­capture systems and other third­party devices for multimodal acquisition and real­time analysis in complex test setups.

EXCELLENT ACCURACY & STABILITY

All models provide +/­0.2% FS overall accuracy (including nonlinearity, hysteresis and repeatability), with customizable Fx, Fy and Fz ranges.With 24­bit resolution and IP65 protection, the system delivers reliable, repeatable measurements even in demanding environments.

SERVICE   CUSTOMIZED

SENSOR CUSTOM:Force sensors with dimensions and sensitivities tailored to different applicationscenarios.

SOFTWARE:Basic data­acquisition interfaces and an open SDK are provided.

ALGORITHM & DATA:Basic data services and custom algorithm development are available.

HARDWARE DESIGN:Matching hardware designs can be provided for corresponding sensor configurations.

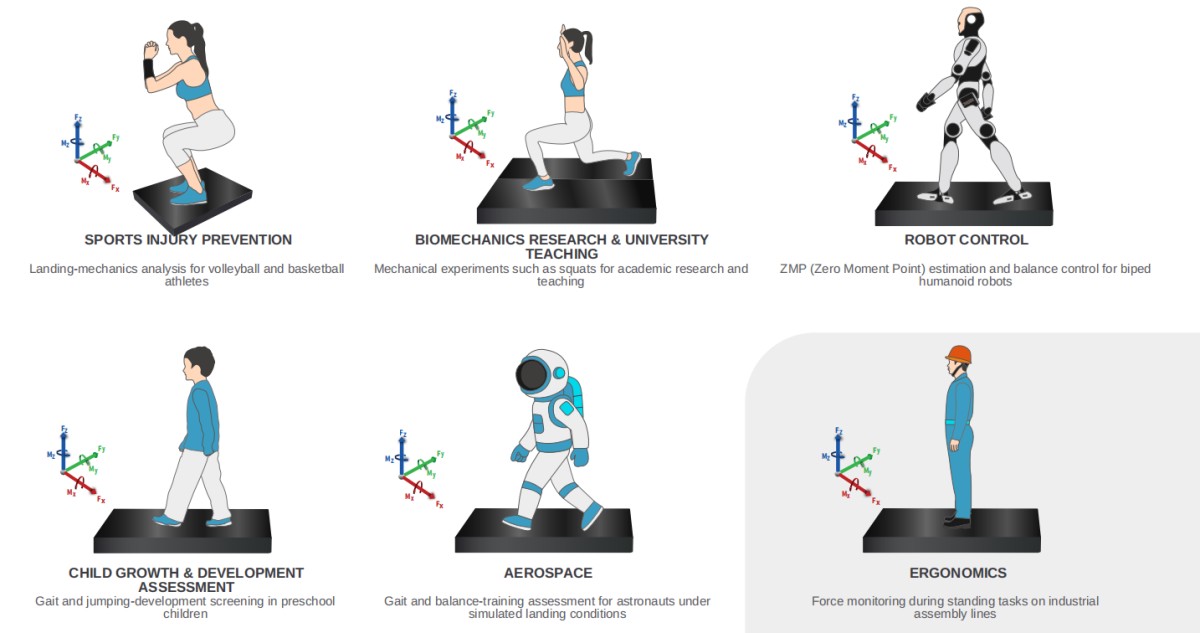

APPLICATION  FIELD
