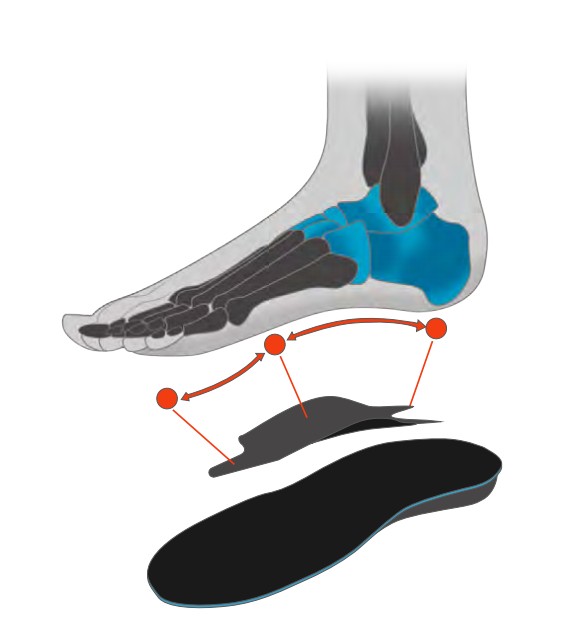

Used for measuring contact pressure  distribution on insoles, it features stable performance, high accuracy, and multiple sensing points. It displays the entire contact pressure in 2D and 3D pressure distribution images and records the whole force process as engineering files. Through  a simple calibration function, it provides the magnitude, timing, and location of forces and pressures acting on the sensor.

PRODUCT ADVANTAGES

Real-Time Display

High Accuracy Analysis

Zone-Specifc Statistics

Quantitative Evaluation

Record & Storage

2D/3D Visualization

Flexible Fabric Material

Soft, Comforable, and Breathable

Extended Serice Life

180° Foldable

Extensibility, suitable for-human body contour measurement

Additional customization of waterproof encapsulation available

Sensor customization

Customized pressure sensors of diferent sizes andsensitivities for diverse application scenarios

Software Services

ProvisionofcoredatacollectioninteraceswithopenSDK/API

Algorithm & Data Services

Provision of fundamental data serices with customizable algorithm solutions

Hardware Design

Matching hardware design soultions for corresponding sensors

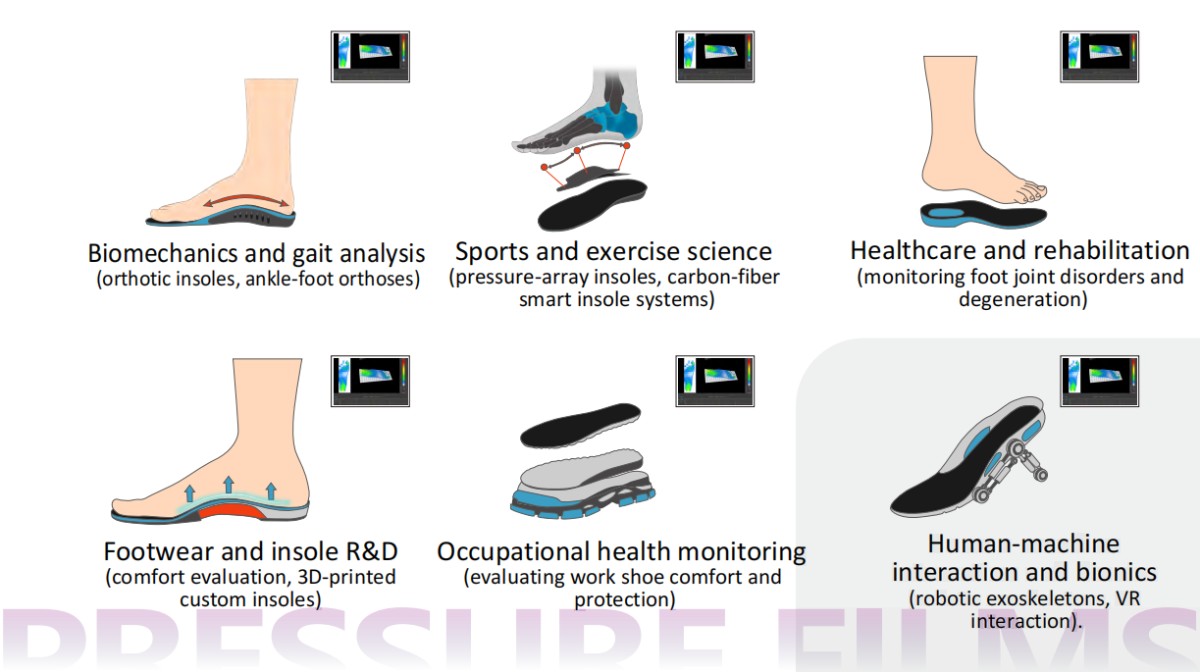

APPLICATION FIELD
