At the intersection of consumption upgrade and technological evolution, the global consumer electronics market is undergoing a profound "experience revolution." From early functional drivers to today's experience-centric approach, user demands for products have shifted beyond basic performance metrics to more nuanced, subjective, and personalized dimensions of comfort. This transformation is particularly pronounced in products that have prolonged contact with the face, such as headphones, eyewear, virtual reality headsets, and wearable medical devices.

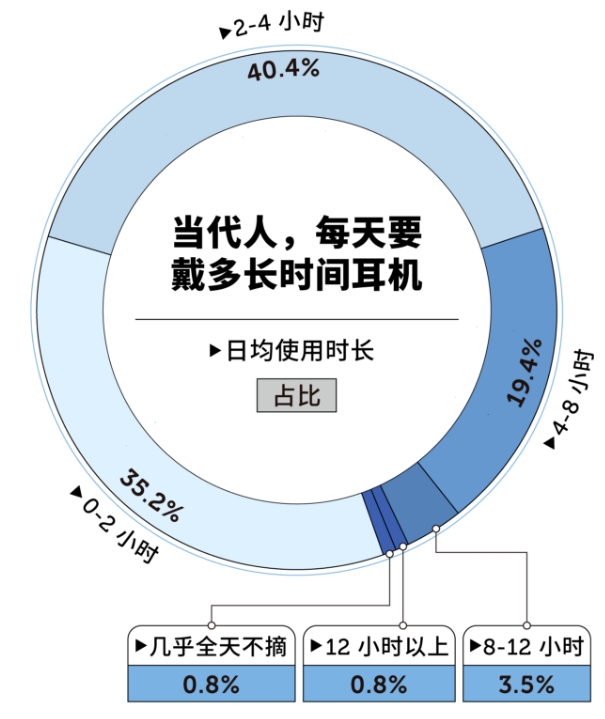

Anyone who wears headphones for extended periods understands—ears are the most particular part of the body. The slightest discomfort, and they protest. Since we spend so much time with these devices, there’s no room for compromise. Today, headphones have almost become "new organs" permanently attached to our ears. According to Himalaya’s data, 38.4% of users wear headphones for over five hours daily. In related surveys, nearly a quarter of respondents reported daily headphone usage exceeding four hours. Even more strikingly, around 5% of people use headphones for over eight hours a day, with some rarely taking them off at all.

Images and data from @Netease Creative Studio

Have you ever experienced a moment when you were fully immersed in music or a meeting, only to be abruptly pulled back to reality by the pressure from your headphones? The faint ache in your temples, the stuffy discomfort in your ears, the invisible tightness around your head like a constricting band... These subtle pains, more "deep-seated" than the hurt from an ex, persistently drain our focus and joy. Comfort while wearing headphones is no longer a luxury—it’s a necessity!

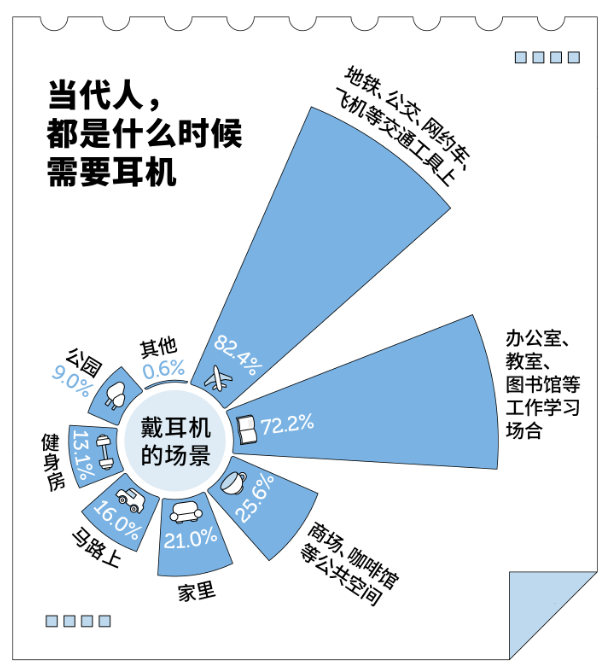

Images and data from @Netease Creative Studio

Comfort, once an elusive soft metric, is now transitioning from qualitative description to precise quantification, becoming a core element in product definition, design iteration, and market competition.

The Whisper of the Era: When "Comfort" Becomes the Heart of a Product

The significant extension of user usage duration and scenarios has elevated comfort from a "bonus feature" to a "fundamental requirement." Whether it's hours of audio immersion during commutes, all-day noise-canceling needs in the office, or intense companionship during fitness activities, products like headphones have deeply integrated into every aspect of daily life. During prolonged wear, even the slightest pressure or discomfort is magnified, directly leading to increased user fatigue, reduced willingness to wear the device, and even causing physical issues such as pressure-induced pain, headaches, or skin irritation.

Image from @Xiaohongshu

Secondly, the diversification and personalization of consumer needs are becoming increasingly prominent. Differences in age, gender, head size, facial contours, and even cranial and ear structures mean that a "one-size-fits-all" design can no longer meet market expectations. Comfort must be built on a thorough understanding and adaptation to human diversity.

Moreover, the segmentation of the high-end and specialized markets is accelerating. In fields such as professional audio, esports, medical rehabilitation, and industrial safety, users demand ultra-long-term comfortable wear in extreme environments. This has driven comfort standards toward higher precision.

Finally, the rise of sustainable design principles requires companies to achieve the best fit and comfort with minimal materials and optimal structures, thereby reducing trial-and-error, returns, and electronic waste caused by poor design.

All these macro trends point to a clear market imperative: comfort must transition from an experience-based, vague design concept into a measurable, analyzable, optimizable, and verifiable closed-loop engineering process.

The **Pressure Films Facial Flexible Fabric-Style Pressure Distribution Testing System** was developed as a key tool to address this core challenge. Its technical essence lies in integrating high-density flexible fabric sensor arrays into ultra-thin, pliable substrate materials, forming an "electronic skin" that seamlessly conforms to the complex curves of the face.

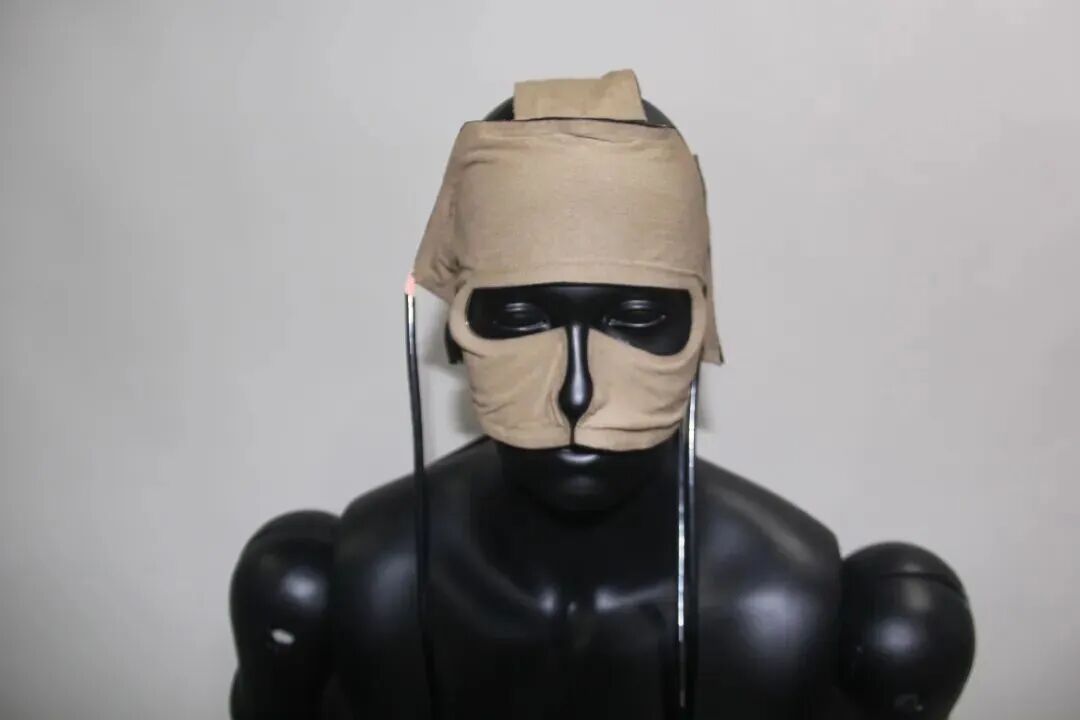

When products such as headphones, glasses frames, or face masks are worn on a head model or human tester equipped with this sensing system, Pressure Films can transmit real-time pressure values and contact areas from each sensor unit via wired or wireless networks. It precisely calculates overall average pressure, maximum/minimum pressure values, and pressure distribution asymmetry, offering a comprehensive dynamic monitoring solution for pressure distribution in both scientific research and commercial retail applications.

The **Pressure Films facial pressure distribution sensor** offers the following advantages:

- **Real-time display**

- **Quantitative assessment**

- **High-precision analysis**

- **Intuitive 2D/3D visualization**

- **Zoned statistical analysis**

- **Recording and storage capabilities**

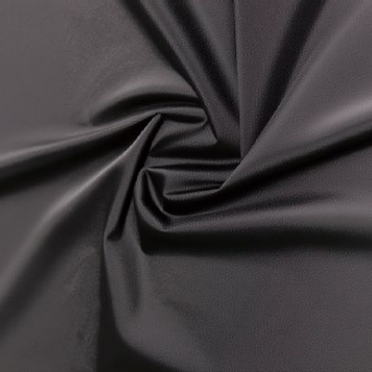

- **Flexible fabric material**

- **Supports 180° folding**

- **Soft, comfortable, and breathable**

- **Extensible design suitable for measuring curved body surfaces**

- **Exceptionally long lifespan**

- **Option for additional waterproof encapsulation customization**

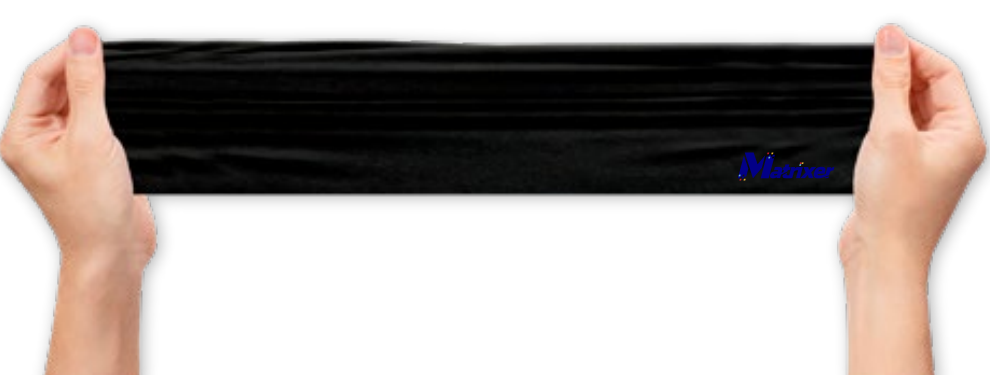

The **Pressure Films facial pressure distribution sensor** is highly durable and remains functional even after folding or crumpling.

This technology plays a systematic and revolutionary role in enhancing the comfort of facial products, with its value extending across every stage of the product lifecycle. In the **product development and design validation phase**, the Pressure Films facial pressure distribution testing system enables engineers to "visualize" the true mechanical contact of a design beyond digital models. For example, in the design of over-ear headphones, Pressure Films can clearly reveal whether the headband distributes pressure evenly across the top of the head, whether the ear cushions apply symmetrical pressure around the ears without peak pressure points, and whether the rotating adjustment mechanism of the ear cups can adaptively disperse pressure across various head shapes. Based on this quantitative data, design teams can optimize the curvature and elasticity of the headband, adjust the density gradient of the foam inside the ear cushions, and refine the torque and damping of the hinges. This allows them to address significant comfort issues during the physical prototype stage, significantly shortening the development cycle and reducing trial-and-error costs.

In the realm of **materials science and ergonomics research**, the Pressure Films facial pressure distribution testing system enables researchers to quantitatively evaluate the impact of different materials and structures (such as mesh breathability or zoned designs) on peak and average pressure in ear cushions, thereby identifying the optimal material combinations. More importantly, by integrating three-dimensional head scan data, it is possible to establish a database of typical head and facial digital models and pressure distributions, laying the foundation for comfort-oriented design based on user demographic statistics.

In the cutting-edge field of **personalized adaptation and customized production**, Pressure Films demonstrates immense potential. In the future, by quickly capturing individual users' head-wearing pressure distribution characteristics, the system's data can provide input parameters for generating personalized headband curvature, ear cushion shapes, or temple bends for glasses. It could even be implemented at retail test points to recommend product models or accessories best suited to a user's facial features, achieving an optimal "one size fits one" comfort solution.

Specifically for different product categories, the focus of Pressure Films applications varies. For **over-ear headphones**, the emphasis is on the uniformity of contact pressure and seal between the ear cushions and the side of the head, as well as the pressure distribution of the headband. For **in-ear headphones**, the focus shifts to the pressure and seal of the silicone ear tips in the ear canal, balancing noise isolation with discomfort. For **VR/AR devices**, due to their heavier weight and more dynamic usage scenarios, it is essential to comprehensively evaluate pressure distribution on the forehead, cheekbones, and back of the head, as well as pressure changes during prolonged wear. For **smart glasses**, the subtle pressure distribution of the nose pads on the bridge of the nose and the temples behind the ears is a decisive factor in comfort.

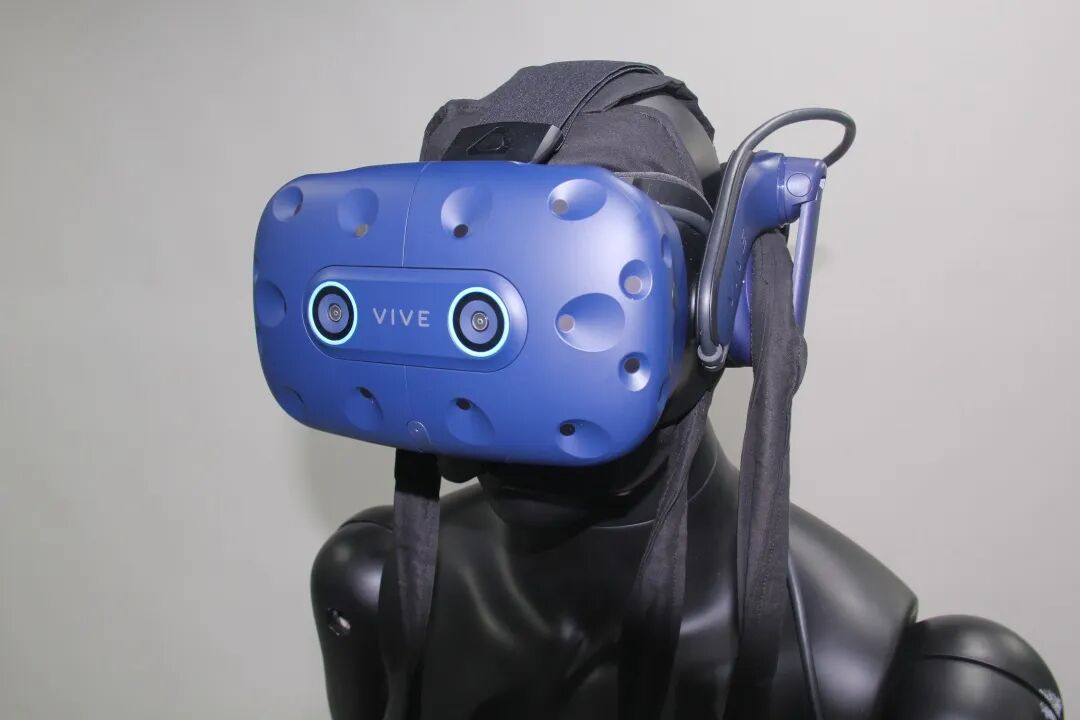

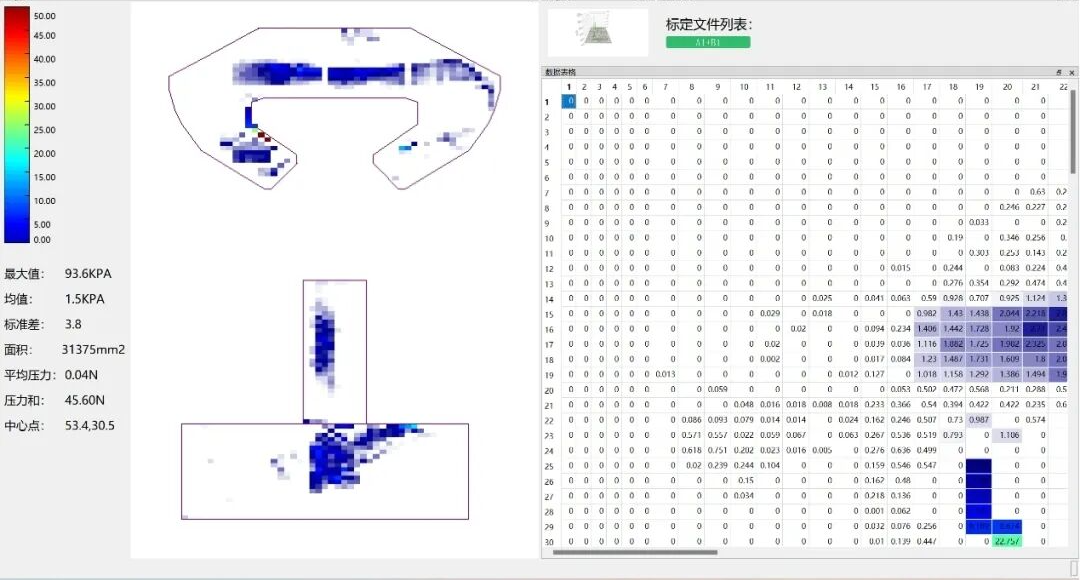

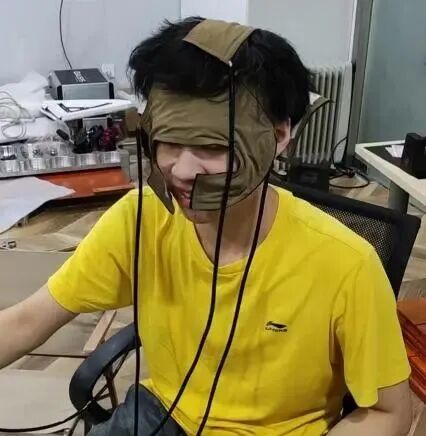

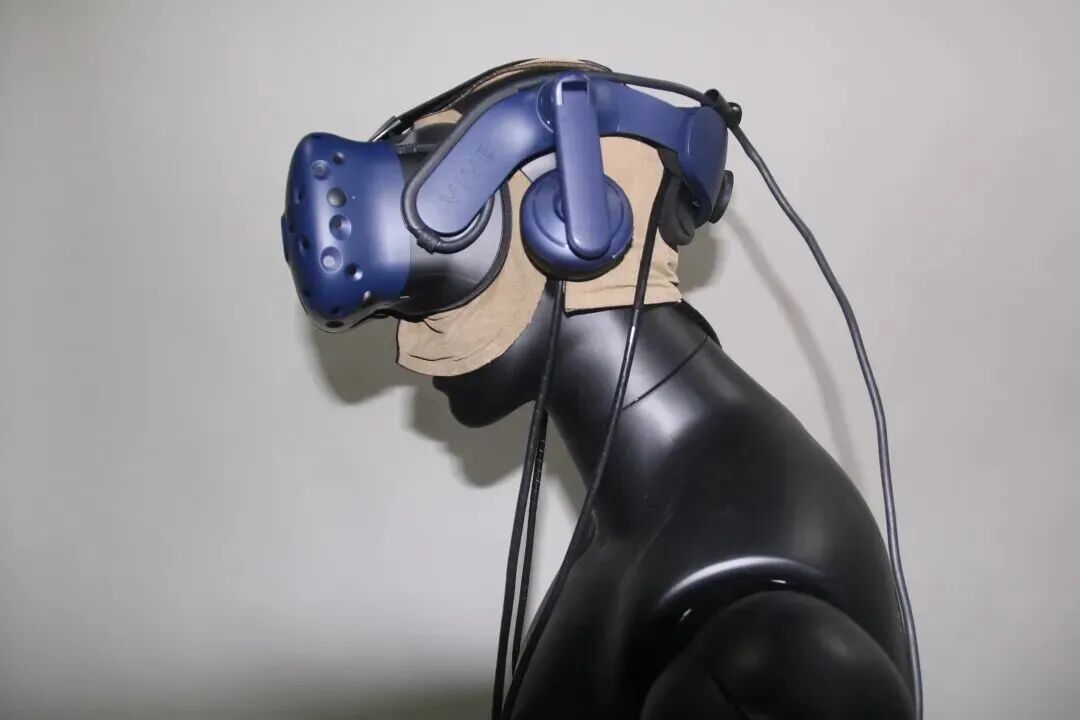

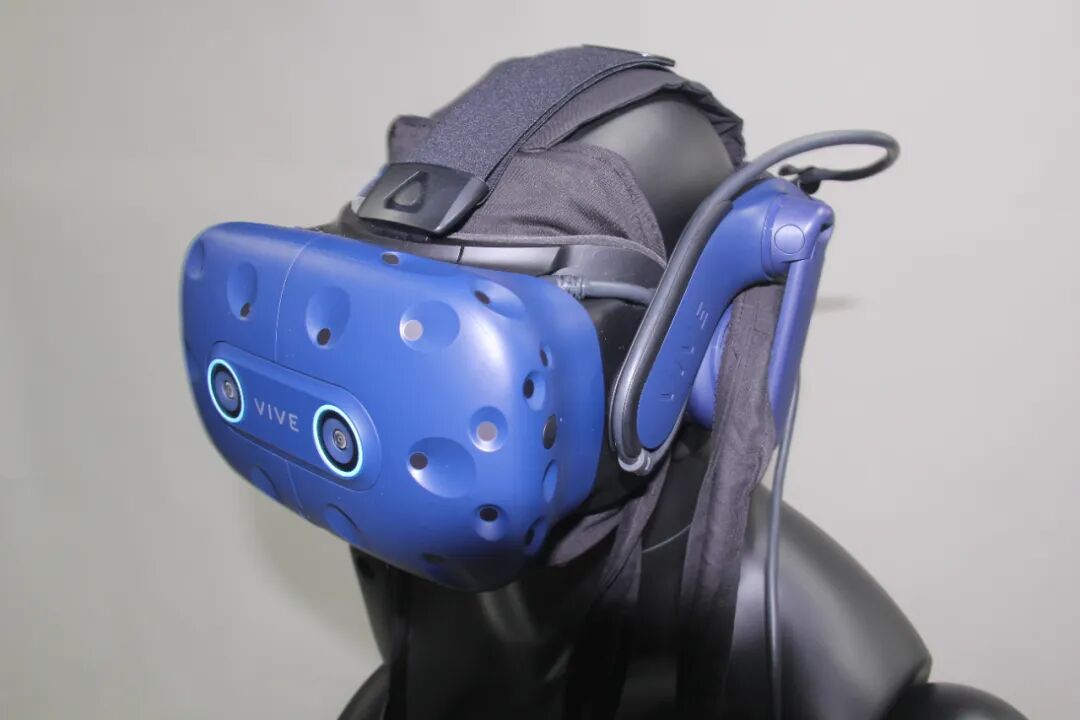

Taking a certain VR headset as an example, we tested the facial pressure distribution when a subject wore and used the device. The test data showed a contact area of 31,375 mm², a total pressure of 45.60 N, an average pressure intensity of 1.5 kPa, an average force of 0.04 N, and a maximum pressure intensity of 93.6 kPa.

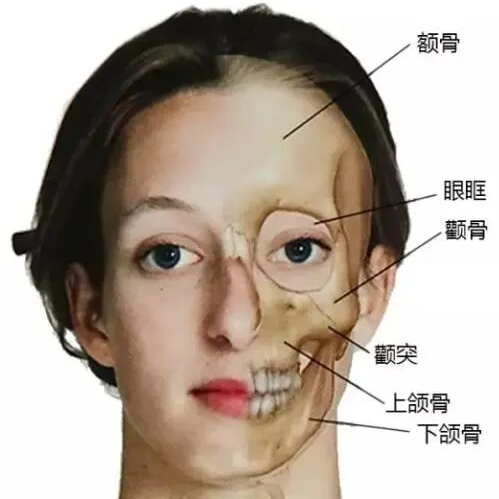

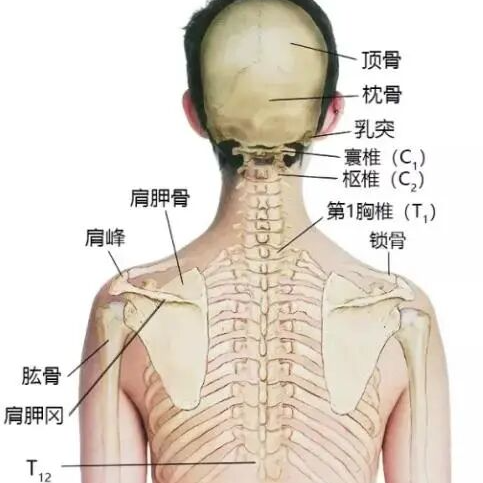

The two-dimensional visualization results from the pressure distribution testing system indicate that pressure is primarily concentrated on the frontal bone, zygomatic bone, mandible, cranial bone, and occipital bone, with the highest pressure observed at the zygomatic bone area, reaching a maximum pressure intensity of 93.6 kPa.

Virtual reality headsets require prolonged wear and close contact with the user's face. Reasonable pressure distribution helps reduce facial pressure and significantly enhances user comfort. Uneven pressure distribution may lead to localized pressure concentration, interfere with the user's eye movements, or cause facial pain and discomfort, thereby diminishing the user experience and acceptability. Designers can optimize pressure distribution to improve the user experience of VR headsets.

From smart glasses resting lightly on the bridge of the nose, to VR headsets offering stable immersion in virtual worlds, to sports headphones staying securely yet imperceptibly in place during intense runs… the quantitative philosophy championed by the Pressure Films system is permeating all products designed for gentle contact with the face. From now on, "comfort" is no longer just a vague, subjective sensation but a measurable, optimizable, and precisely deliverable design metric.

Pressure Films represents not only a technological breakthrough but also a paradigm shift in thinking—placing human experience at the center of the innovation process. It ensures that every subtle sigh of our skin is heard, understood, and thoughtfully addressed, allowing the most human of pursuits—comfort—to receive the most technological reverence.
